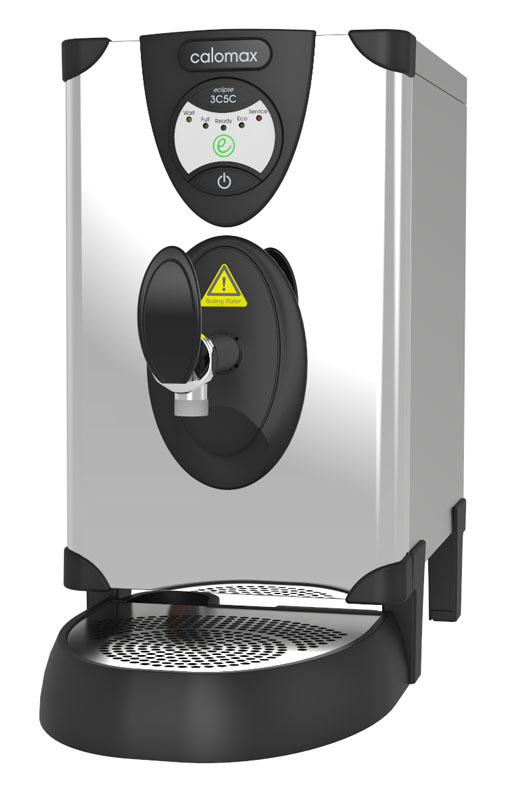

Eclipse model 3C5C

Performance with modern styling, where overhead space is limited.

The 3C5C is designed to fit neatly beneath a wall cupboard, positioned at a standard 18" above the worktop.



Key Features:

  • UK designed and made

  • 5L rapid draw off

  • Temperature controlled between 96°C and 97°C

  • Easy install and service features - removable front panel.

  • Energy-saving "eco" button which reduces the volume of boiling water by 50% at "off peak" times of demand.

  • Antimicrobial protection in the tap handle and spill tray.

  • Clear and unambiguous self-diagnostic display panel.

  • Integral scale-inhibitor technology.

  • 2-year warranty.

  • No steam emissions

  • 13A plug fitted

  • Discrete on/off switch incorporated into moulding.

  • Competetively priced.

  • Cool-to-touch stainless steel outer casing.

  • Complete with matching spill-tray

  • Supplied complete with food grade hose

  • Counter-top securing clamps available as an optional extra

  • WRAS approved (click here to view the official WRAS directory entry)



  Any water fitting or water-using appliance connected to the mains water supply must comply with the Water Fittings Regulations (or Byelaws in Scotland). This ensures the appliance does not waste or contaminate the drinking water supply. In order to demonstrate compliance, a number of companies exist (typically WRAS or Kiwa) who test appliances to ensure they conform with these regulations.

  An anti-microbial additive, moulded into the handle and spill tray during manufacture to help protect the user from cross-contamination.




Click over image and move mouse

Download specification sheet

Download WRAS certificate

Download 3D CAD files

BIM Download

Please provide the following information to download a selection of CAD and BIM files


Size Ref Casing Rating Capacity
(including initial draw-off)
Overall dimensions
(W x D x H)
List Price

5 Litre 3C5C-SS Stainless steel 3kW 25 litres per hour 240 x 530 x 440 £788*


*Special prices for NHS customers buying direct. Please contact us for details





You may also require:


Water Filter

Eclipse Foot Clamp set

Plug-in Digital time switch

Hands-free Handle Adaptor
