Eclipse model 3W7-5

Performance with modern styling.

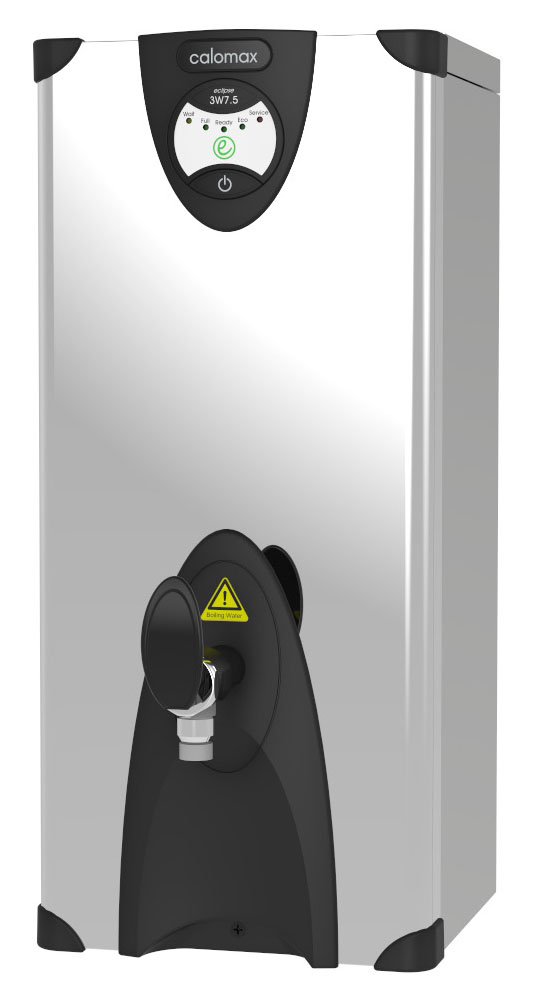

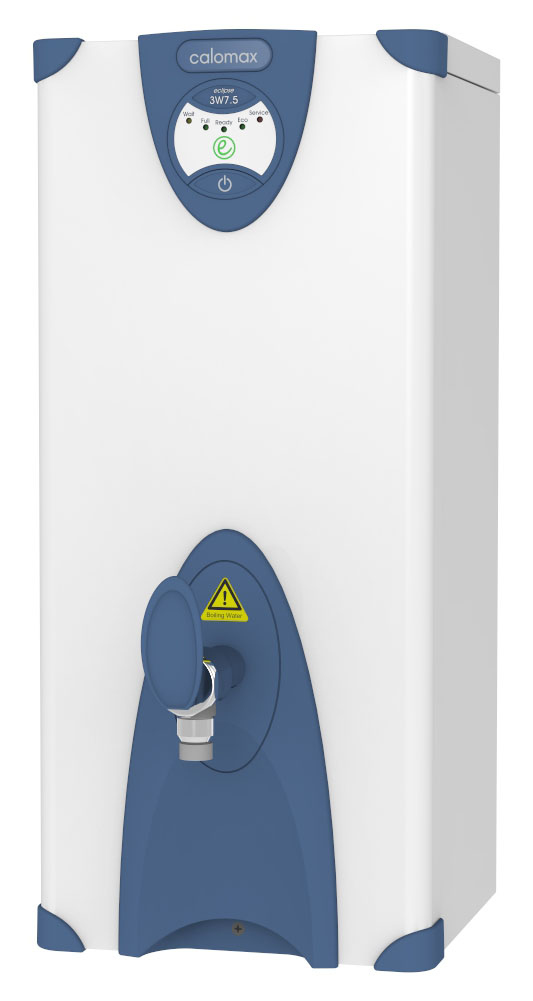

Where worktop space is limited, the wall-mounting 7.5L Eclipse offers a competitively priced, but feature-rich solution. Available in white or stainless steel finish.






Key Features:

  • UK designed and made

  • 7.5L rapid draw off

  • Temperature controlled between 96°C and 97°C

  • Easy install and service - removable front panel.

  • Energy-saving "eco" button which reduces the volume of boiling water by 50% at "off peak" times of demand.

  • Antimicrobial protection in the tap handle.

  • Clear and unambiguous self-diagnostic display panel.

  • Integral scale-inhibitor technology.

  • 2-year warranty.

  • No steam emissions

  • Discrete on/off switch incorporated into moulding.

  • Cool-to-touch outer casing.

  • WRAS approved (click here to view the official WRAS directory entry)

  • Push-fit and compression adapter included to simplify installation



  Any water fitting or water-using appliance connected to the mains water supply must comply with the Water Fittings Regulations (or Byelaws in Scotland). This ensures the appliance does not waste or contaminate the drinking water supply. In order to demonstrate compliance, a number of companies exist (typically WRAS or Kiwa) who test appliances to ensure they conform with these regulations.

  An anti-microbial additive, moulded into the handle and spill tray during manufacture to help protect the user from cross-contamination.



Click animation and move mouse

Download 3W7.5-W specification sheet

Download 3W7.5-SS specification sheet

Download WRAS certificate

Download 3D CAD files

(Wall Mounting Bracket Provided)

BIM Download

Please provide the following information to download a selection of CAD and BIM files




Size Ref Casing Rating Capacity
(including initial draw-off)

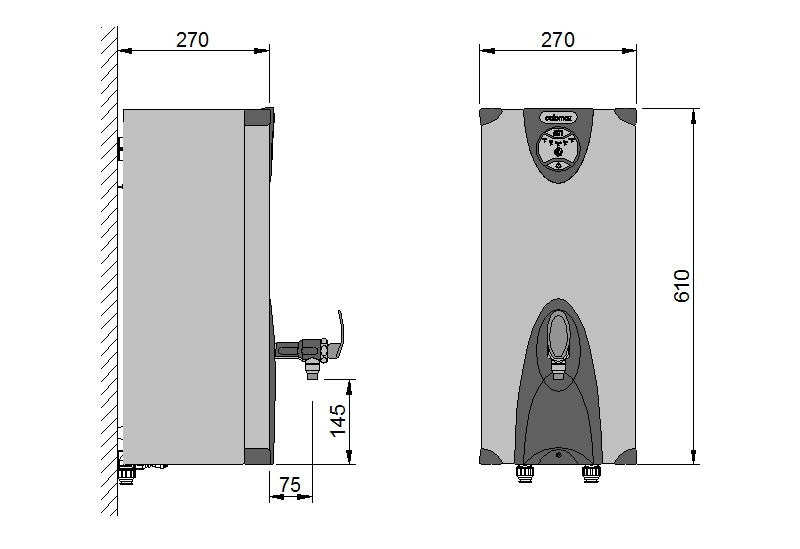

Dimensions
(W x D x H)
List Price

7.5 Litre 3W7.5-W White 3kW 27 litres per hour 270 x 270 x 610 £997*

7.5 Litre 3W7.5-SS Stainless steel 3kW 27 litres per hour 270 x 270 x 610 £1059*


*Special prices for NHS customers buying direct. Please contact us for details





You may also require:


Water Filter

Wall-Mounting tray

Fused Spur Digital time switch

Hands-free Handle Adaptor
