Installation

Answer the questions below to find a recommended installation for your application:

Counter-top or Wall-mounting?

Counter-top boilers tend to cost a little less and are easier to install (the 3kW models use a 13 amp plug so you don't need a qualified Electrician to wire them to a fused spur connection.) The down-side is that they take up valuable counter space and are less flexible in use. Bear in mind that a larger model may be needed (in both volume and height) if you plan to fill large urns or flasks.




Counter-top: How will the vent / overflow be extended?

It is important to extend the vent / overflow to a safe and visible point of discharge, just as you would with a sink or bath. If the boiler is to be positioned near to a sink, this often provides an easy option. Alternatives include plumbing to a waste pipe via a tundish. Counter-top models can be easily reconfigured to vent into a spill tray, which should be plumbed to a waste.




Wall-mounting: How will the vent / overflow be extended?

It is important to extend the vent / overflow to a safe and visible point of discharge, just as you would with a sink or bath. If the boiler is to be positioned near to a sink, this often provides an easy option. Alternatives include plumbing to a waste pipe via a tundish. Counter-top models can be easily reconfigured to vent into a spill tray, which should be plumbed to a waste.




Option 1:



Boiler vented to sink. Spill tray emptied manually

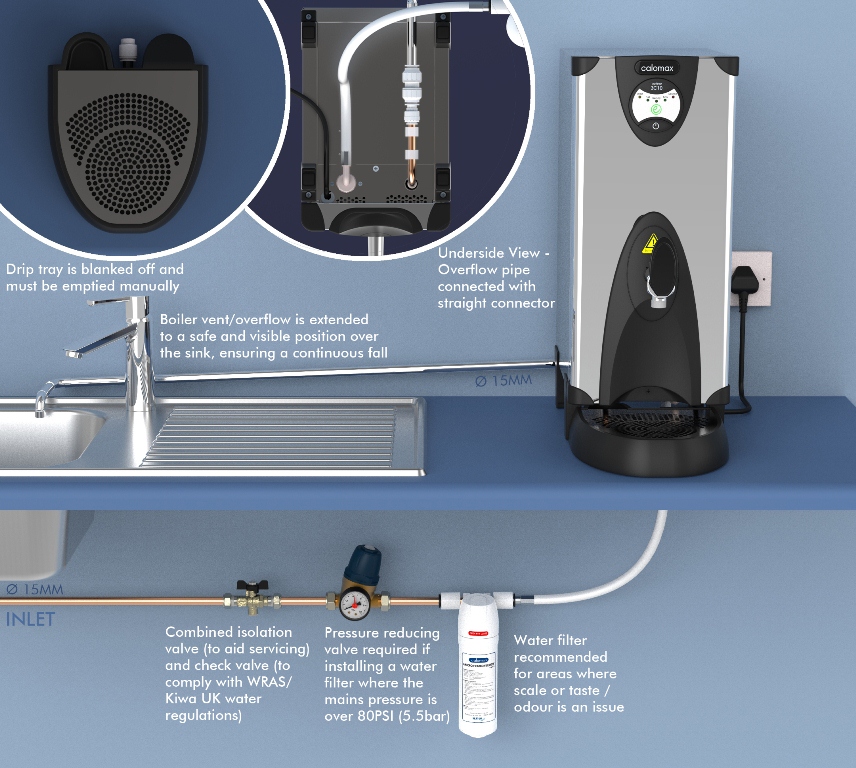

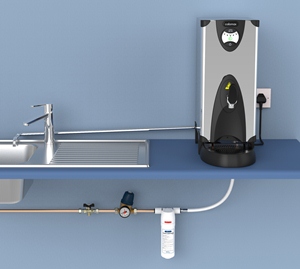

CS preview

(click on image for more details)



You may require the following items:

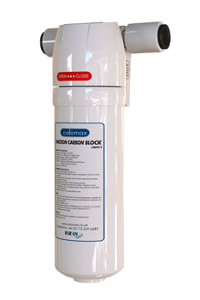

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Push-fit straight connector


Option 2:



Boiler vents over plumbed spill tray

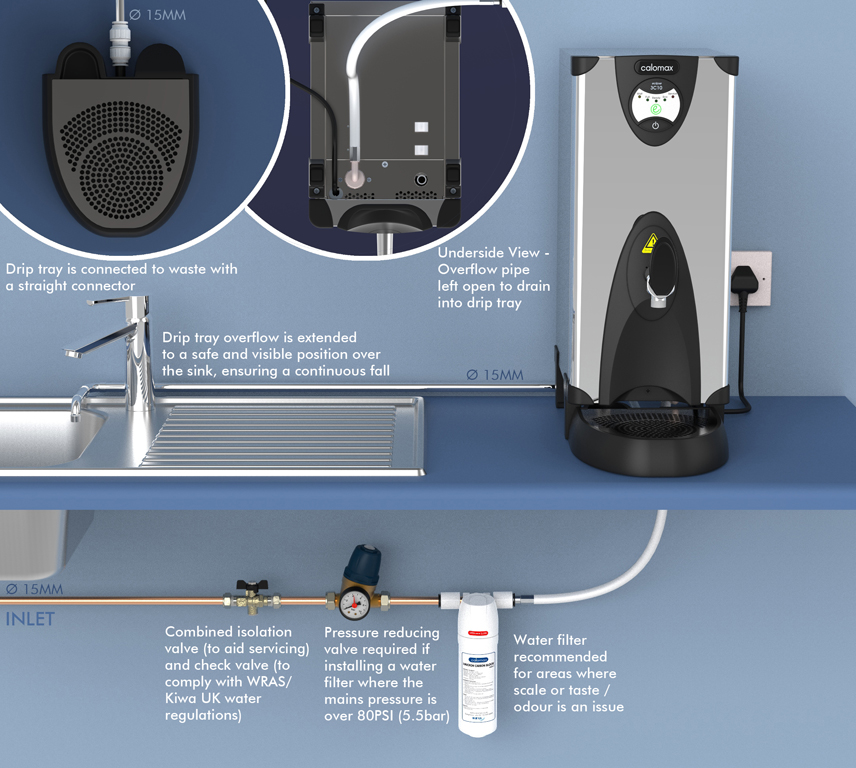

CSDT preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Push-fit straight connector


Option 1:



Boiler plumbed to waste. Spill tray emptied manually

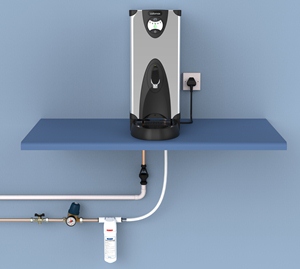

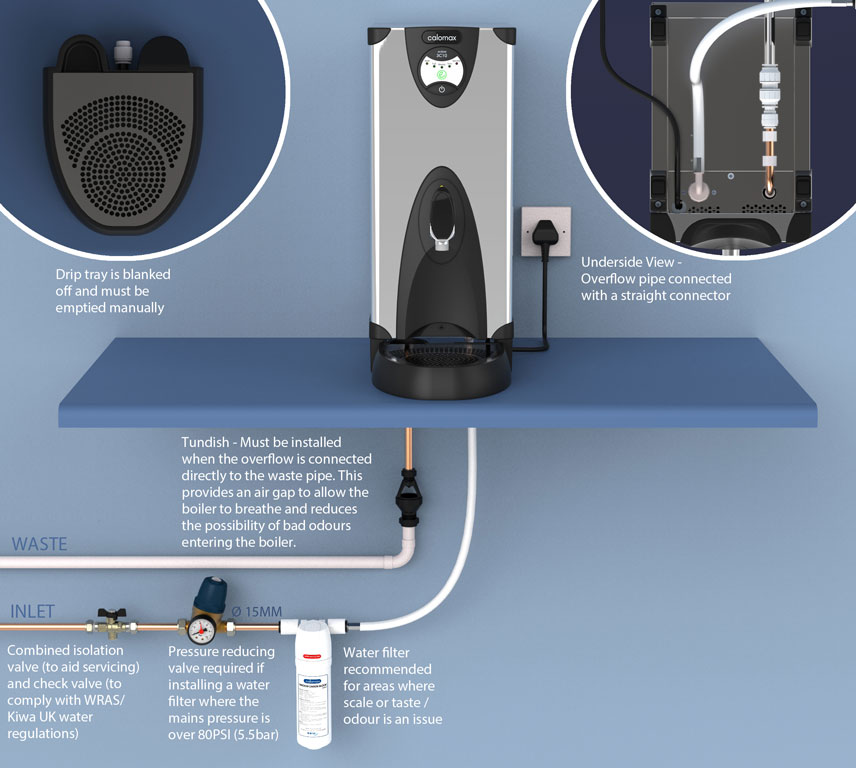

CT preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Tundish
Push-fit straight connector

Option 2:



Boiler vents over plumbed drip tray

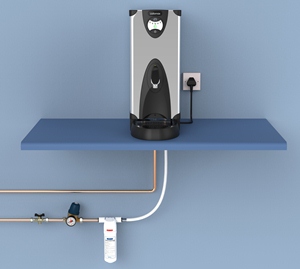

CDT preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Push-fit straight connector




Recommended option:

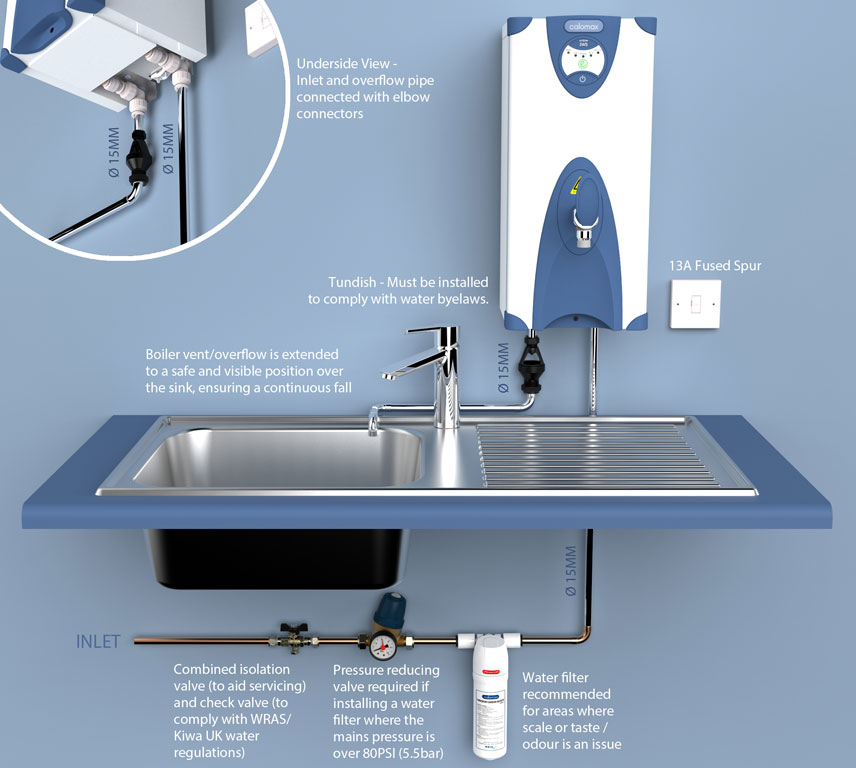

Boiler vented to sink

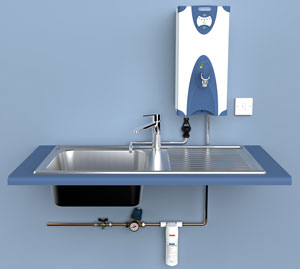

WS preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Push-fit elbow connector


Option 1:



Boiler plumbed to waste. No spill tray

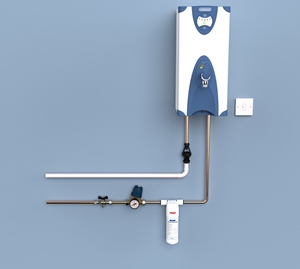

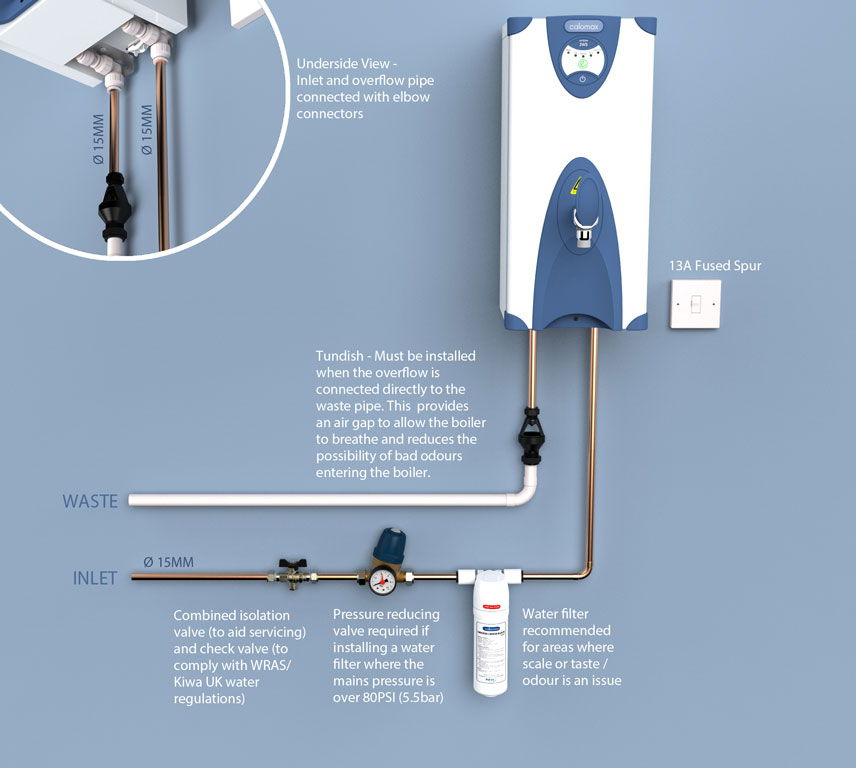

WT preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Tundish
Push-fit elbow connector

Option 2:



Boiler plumbed to waste. Spill tray emptied manually

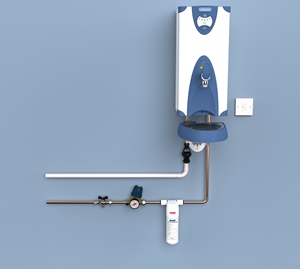

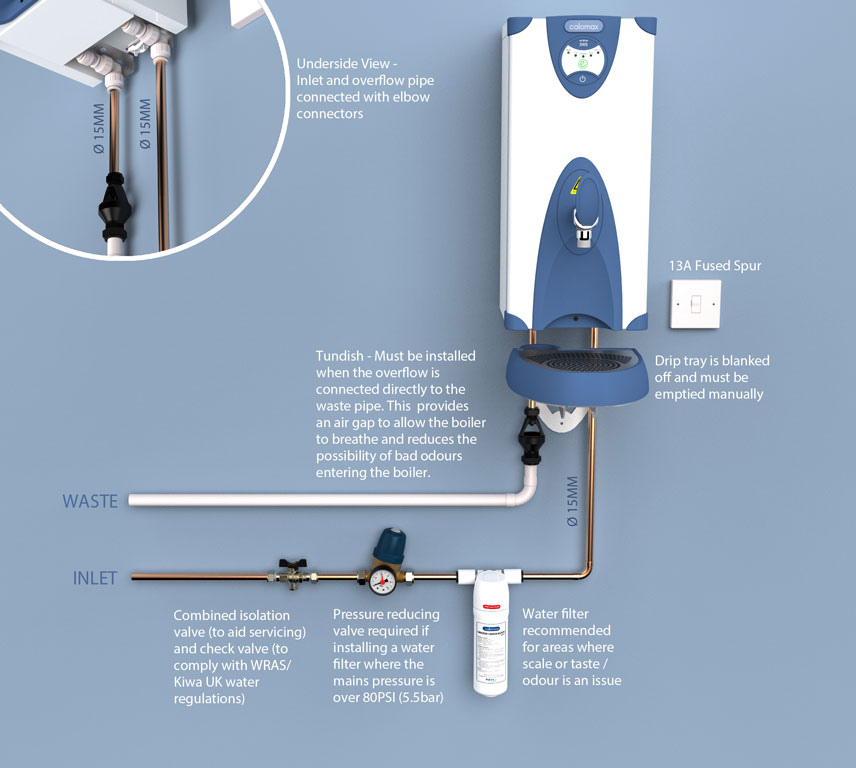

WDT preview

(click on image for more details)



You may require the following items:

Water Filter
Pressure Reducing Valve
Combined Check & Service valve
Tundish
Push-fit elbow connector
